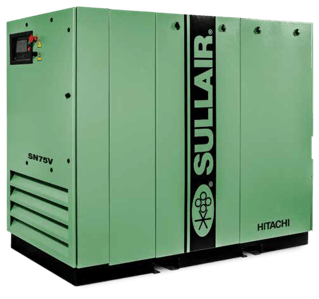

SN Series SN5500- SN7500S
HIGH PERFORMANCE. LOW ENERGY USAGE.
Sullair SN Series air compressors feature the robust, globally recognized air end with highly efficient asymmetric profile and tapered roller bearings — backed by the Sullair comprehensive 10-year Diamond Warranty.
- Legendary Sullair Air End
- 7" Sullair Touch Screen Controller (STS) for easy access to all compressor controls
- Helps significantly reduce operating and energy costs
Features & Benefits
- Legendary Sullair Air End
- Low-restriction inlet valve
- Low carryover air/oil separator design
- High efficiency drive and fan motor
- Integral compressor sequencing
- NEMA 4 Wye-Delta starter cabinet
- TEFC Motor
- 7˝ Sullair Touch Screen Controller (STS)
- Compact footprint
- Genuine Sullube® 10,000-hour, non-varnishing, biodegradable compressor fluid
- Optimalair® air filter providing 10 times better filtration than other filters
- Quiet design
- 10-year Diamond Warranty*
- AirLinx® remote monitoring ready
- Easy-to-enable remote monitoring of key compressor operation parameters, warnings and alarms to help maximize uptime and efficiency
Models & Specifications
- SN5500—75 hp (55 kW), 277 to 377 acfm (7.84 to 10.68 m³/min), 100 to 175 psig (7 to 12 bar)
- SN5500V—75 hp (55 kW), 278 to 377 acfm (7.87 to 10.68 m³/min), 100 to 175 psig (7 to 12 bar)
- SN5500S—75 hp (55 kW), 354 to 387 acfm (10.02 to 10.96 m³/min), 100 to 125 psig (7 to 9 bar)
- SN7500—100 hp (75 kW), 370 to 490 acfm (10.48 to 13.88 m³/min), 100 to 175 psig (7 to 12 bar)
- SN7500V—100 hp (75 kW), 394 to 500 acfm (11.16 to 14.16 m³/min), 100 to 175 psig (7 to 12 bar)
- SN7500S—100 hp (75 kW), 371 to 500 acfm (10.51 to 14.16 m³/min), 100 to 175 psig (7 to 12 bar)
