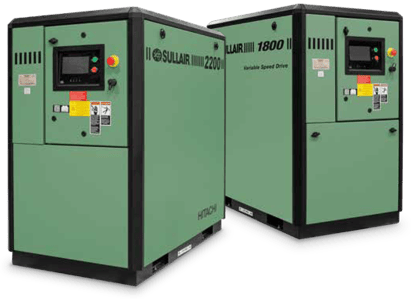

Sullair_S_energy_1800-3500

S-ENERGY 1800-7500
ROTARY SCREW AIR COMPRESSORS

High Performance. Low Energy Usage

Sullair S-energy® 25-100 hp air compressors feature the robust, globally recognized air end with highly efficient asymmetric profile and tapered roller bearings — backed by the Sullair comprehensive 10-year Diamond Warranty.

25 – 100 HP, 85 – 500 cfm, 100 – 175 psig.
  • Durability
  • Helps significantly reduce operating and energy costs
  • Easy Serviceability
  • High-Performance, Energy-Efficient Design
  • WS Microprocessor Controller
  • Legendary Sullair Air End
  • 10-Year Air End Warranty
  • 5-Year Warranty covering the motor, coolers, and air/fluid vessel
  • 10,000-hour Genuine Sullube factory fill lubricant
  • Standard Features: TEFC motors, Y-Delta Starters, Sound Attenuated Enclosure, NEMA 4 Electricals, Air Cooled or 40HP Water Cooled
  • Options: Energy Saving Electronic Spiral Valve (75/100HP), Variable Speed Drive (N12), AirLinx Remote Monitoring, Cold Weather Package, EES Heat Recovery (40HP> AC only), High Static Fan (3/4″WC), Oil Containment Pan, Full Package Filtration, Phase Monitor Relay, Remote Air Intake, Stainless Steel Control Lines and Fittings, Water Regulator and Solenoid Valve (WC only), Weatherhood (AC only), Zero Loss Drain

Stationary Video Highlight

S Energy Series

Flow

85 – 500 cfm
2.4 – 14.16 m³/min

Pressure

100 – 175 psi
7-12 bar

Power

25 – 100 hp
18 – 75 kW

Benefits and Features

Models and Specs

Benefits and Features

    • Low restriction inlet valve for better cfm (m³/min) performance
    • Low carryover air/oil separator design
    • High efficiency drive and fan motor
    • Integral compressor sequencing
    • NEMA 4 Wye-Delta starter cabinet
    • TEFC Motor
    • WS™ Microprocessor Controller
    • Compact footprint
    • Genuine Sullube® 10,000-hour, non-varnishing, biodegradable compressor fluid
    • Optimalair® air filter providing 10 times better filtration than other filters
    • 10-year Diamond Warranty
    •

Options

  • Energy Saving Electronic Spiral Valve (75/100HP)
  • Variable Speed Drive (N12)
  • AirLinx Remote Monitoring
  • Cold Weather Package
  • EES Heat Recovery (40HP> AC only)
  • High Static Fan (3/4″WC)
  • Oil Containment Pan
  • Full Package Filtration
  • Phase Monitor Relay
  • Remote Air Intake
  • Stainless Steel Control Lines and Fittings
  • Water Regulator and Solenoid Valve (WC only)
  • Weatherhood (AC only)
  • Zero Loss Drain

 Available models:
  • 3000PB—40 hp (30 kW), 166 to 200 acfm (4.70 to 5.66 m³/min), 100 to 150 psig (7 to 10 bar)
  • 3000PVB—40 hp (30 kW) Variable Speed Drive (VSD), 163 to 200 acfm (4.62 to 5.66 m³/min), 100 to 150 psig (7 to 10 bar)
  • 3700B—50 hp (37 kW), 180 to 251 acfm (5.10 to 7.11 m³/min), 100 to 175 psig (7 to 12 bar)
  • 3700VB—50 hp (37 kW) Variable Speed Drive (VSD), 183 to 249 acfm (5.18 to 7.05 m³/min), 100 to 175 psig (7 to 12 bar)
  • 4500B—60 hp (45 kW), 221 to 269 acfm (6.26 to 7.62 m³/min), 125 to 175 psig (9 to 12 bar)
  • 4500VB—60 hp (45 kW) Variable Speed Drive (VSD), 222 to 260 acfm (6.29 to 7.36 m³/min), 125 to 175 psig (9 to 12 bar)
