TS 20-32S SERIES – TWO-STAGE By Sullair From Atlas Machine & Supply.

Two-Stage Rotary Screw Air Compressor

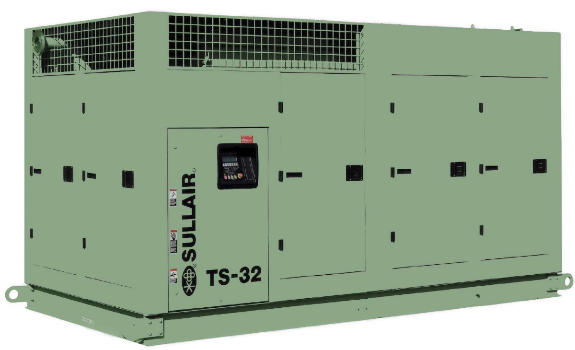

TS Series Compressors

Sullair Two-Stage Air Compressors feature a superior end-to-end design for optimum efficiency and power savings.

· Two-stage technology, High-Performance, Energy-Efficient Design, Superior Longevity Air End Life

· Supervisor Microprocessor Controller

· Legendary Sullair Air End – decades of proven performance and efficiency

· 10-Year Air End Warranty

· 5-Year Warranty covering the motor, coolers, and air/fluid vessel

· 10,000-hour Genuine Sullube factory fill lubricant

· Standard Features: ODP motors, Y-Delta Starter, NEMA 4 Electricals

· Options Include Sullair Spiral Valve Technology, Variable Speed Drive, Cold Weather Package, Weather Hood, Total Package Filtration

150 – 600 HP, 616 – 3000 cfm, 100 – 175 psig.

100 – 600 HP, 434 – 3000 cfm, 100 – 175 psig.

Benefits and Features

Benefits and Features ctd.

Models and Specs

Two-stage technology, High-Performance, Energy-Efficient Design, Superior Longevity Air End Life
Supervisor Microprocessor Controller
Legendary Sullair Air End
10-Year Air End Warranty
5-Year Warranty covering the motor, coolers, and air/fluid vessel
10,000-hour Genuine Sullube factory fill lubricant
Standard Features: TEFC Motors 350HP, ODP Motors 400-600 HP, Heavy Duty Air Filter, TEFC PE Motor, NEMA 4 YD Starter, Phase Monitor, Sequencing, Enclosure, Spiral Valve, Stainless Steel Control Lines and Fittings, Zero Loss Drain
Options: Variable Speed Drive, 460V or 575V Solid State NEMA 4 Starter, Medium Voltage Motors & Starters, ESS Heat Recovery, Cold Weather Package, Deduct Enclosure, High Static Fan (AC), NEMA 4X Starter enclosure, Pristine Food Grade Lubricant, Weatherhood (AC), Remote Coolers, Air-cooled or Water Cooled

Easy Maintenance
- Access to all critical components even with a sound enclosure installed
Time-Proven End-to-End Design
- Reduces pressure drop through stages
- Easy serviceability
NEMA 4
- Wye-Delta starter for a softer start
Bearing Fluid Reservoirs
- Ensure that fluid is available at start-up
- Extend air end life
Genuine Sullube® Factory Fill
- A 10,000-hour extended-life synthetic fluid powered by Dow technology, Sullube has been used in more than 50,000 compressors worldwide

Multi-Stage Air-Fluid Separation
- Dual nested Optimizer™ separator elements, reduce fluid carryover to a maximum of 1 ppm
- Reduced carryover lowers make-up fluid costs
- Pleated Optimizer elements lower initial pressure drop for greater efficiency and extends element life
- Easy to change with built-in lid lifting device
Fiberglass Fluid Filter
- Aircraft-quality media provides better filtration
- Up to 20% more efficient than conventional paper elements
- Lengthens life of the compressor
Two-Stage Compressor Air End
- Delivers more air
- Reduces power consumption
- Extends air end bearing life
Enhanced Serviceability for Air-Cooled Oil Cooler and Aftercoolers
- Easy to remove panels provide access for cleaning coolers
Motor Coupled to Air End Through Non-Lubricated, Flexible Coupling
- Allows use of standard NEMA frame motor
- Simplifies installation and start-up
Variable Capacity Control System Featuring Spiral Valve Technology
- Lowers part-load operating costs
- Reduces cycling duty on package
- Maintains consistent plant pressure
- Simple control
- Reduces bearing load

Sullair Supervisor™ Controller
- Computer-compatible microprocessor controller has simple graphic illustration of monitored functions and an easy-to-read keypad
- Constant readout of pressure and temperature
- On-demand readout of all operating and maintenance conditions
- Monitors key functions and safety shutdowns
- Power failure auto restart
- Dual control, provides automatic start-stop operation
- Lead-lag and sequencing with multiple compressors
- Service and preventive maintenance schedule
- Hours are recorded for “Run,” “Loaded” and “Consumable Parts”
- Fault history with sensor readings
- “Help” key provides built-in troubleshooting
Optimalair® Heavy-Duty Air Intake Filter
- Includes remote air intake connection
- Provides finest inlet filtration in the industry (0.4 microns using Fine Fiber Technology)
- Keeps fluid clean and extends life of other internal components
- Reduces pressure drop throughout the operating life, resulting in energy savings.

Available models

60 Hz

TS-20—150 to 250 hp (112 to 186 kW), 616 to 1200 acfm (17.4 to 33.9 m3/min), 100 to 175 psig (6.8 to 12 bar)
TS-32—200 to 350 hp (149 to 261 kW), 1100 to 1875 acfm (31.1 to 53.1 m3/min), 100 to 175 psig (6.8 to 12 bar)
TS-32S—400 to 600 hp (298 to 447 kW), 1681 to 3000 acfm (47.6 to 84.9 m3/min), 100 to 150 psig (6.8 to 10.3 bar)
V-320TS—200 to 450 hp (149 to 336 kW) Variable Speed Drive (VSD), 945 to 2310 acfm (26.7 to 65.4 m3/min), 100 to 150 psig (6.8 to 10.3 bar)

50 Hz

TS-20—150 to 250 hp (112 to 186 kW), 590 to 990 acfm (16.7 to 28.0 m3/min), 100 to 175 psig (6.8 to 12 bar)
TS-32—200 to 350 hp (149 to 261 kW), 1021 to 1845 acfm (28.9 to 52.3 m3/min), 100 to 175 psig (6.8 to 12 bar)
TS-32S—400 to 600 hp (298 to 447 kW), 1942 to 2900 acfm (55.0 to 82.1 m3/min), 100 to 150 psig (6.8 to 10.3 bar)

PristineFG™
- Food Grade Designed specifically for compressors used in food, beverage and pharmaceutical applications and meets FDA and USDA H-1 requirements
Variable Speed Drive (VSD)
