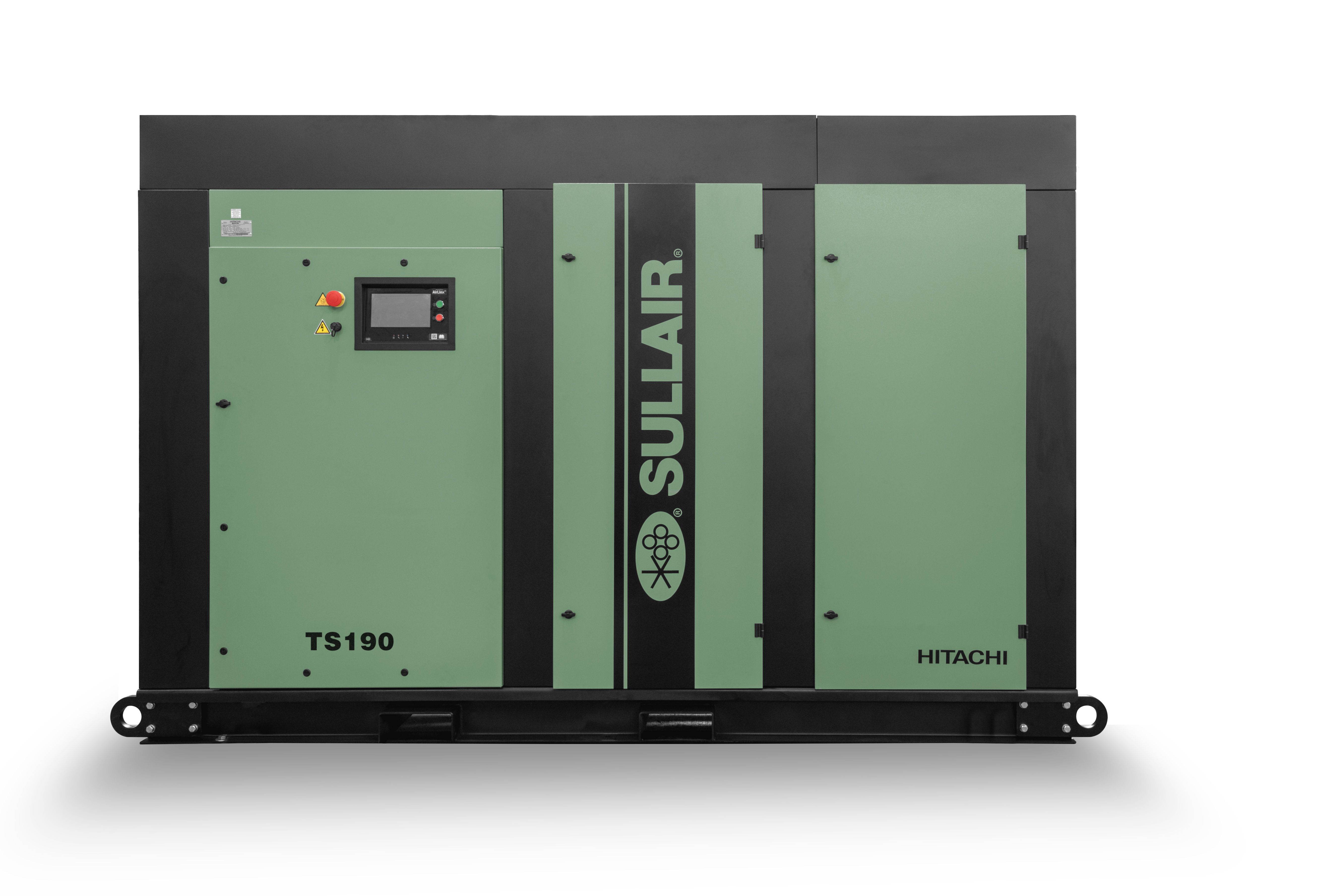

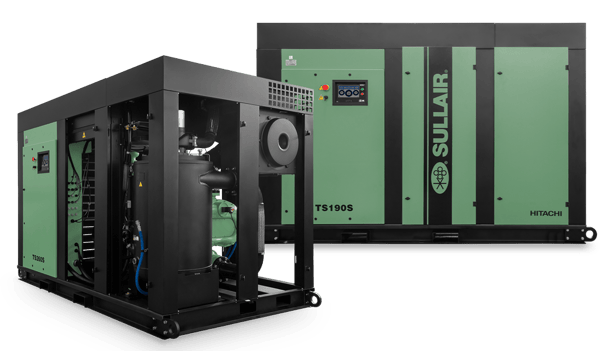

TS SERIES
THE MOST EFFICIENT SULLAIR EVER
Expect big energy savings with Sullair TS Series Two-Stage Rotary Screw Air Compressors. Our engineers looked at increasing efficiency with an intense level of detail and it paid off.
- Best-in-Class Efficiency*
- Ease of Use & Ease of Service
- Legendary Sullair Durability
Built on the platform of Sullair LS Series Single Stage Rotary Screw Air Compressors—which completely changed the game and has been in high demand since 2017 — the Sullair TS Series takes the proven performance and revolutionary Sullair LS package design into two stage compression.
* Based on current (March 2024) efficiency data published in accordance with the Compressed Air and Gas Institute (CAGI) third-party verification program.
Features & Benefits
- Two-Stage Air End
The most efficient Sullair Two-Stage Air End EVER- Innovative over/under design with integrated gearbox
- Patent-pending interstage cooling for increased efficiency and low pressure drop
- Lighter and more compact
- Optimized gearing for maximum efficiency
- Casting featuring internally ported lubricant passages
- Asymmetrical rotors designed, engineered and
manufactured in the USA - High-efficiency bearings in first and second stage
- Sullair OptimalAir® Air Filter
- High-efficiency/heavy-duty inlet filter holds up to five times more contaminant than conventional cellulose filters
- Cleaner intake air keeps fluid clean and extends component life
- 99.9% efficiency per ISO 5011
- Sullair Air-Fluid Separator
- Designed for low pressure drop, reducing energy requirements
- High-efficiency media maximizes oil removal from compressed air
- Low carryover (<2ppm) means fewer lubricant top-offs needed
- ASME and CRN approved
- Cooling System
- Heavy-duty, oversized cooling system designed for 46°C (115°F) applications
- Dual TEFC fan motors with VSD to help maintain stable discharge temperature—increasing efficiency
- Easy-clean access panels designed in the package
- Separate oil cooler and aftercooler reduces imbalanced temperature loads
- Motor
- Super Premium Efficiency (IE4) TEFC motors
Standard on Fixed Speed and Electronic Spiral Valve models - Premium Efficiency (IE3) TEFC motors
Standard on VSD models - Heavy-duty, slow running 1800 rpm design
- Extended life when compared to higher RPM motors
- 104°F (40°C) ambient motor temperature rating
- Class F insulation, Class B rise for higher temperature operation
- Super Premium Efficiency (IE4) TEFC motors
- Genuine Sullube® Factory Fill
- Non-varnishing fluid protects and cleans your compressor
- Polyglycol base provides optimal viscosity and helps optimize operating temperatures
- Enhanced Sullair Touch Screen (STS) Controller
- 10˝ color screen for easy viewing and intuitive operation
- Menu-driven screens offer easy access to compressor controls
- Integrated graphing and trending to analyze compressor performance
- Sequencing up to 16 compressors
- AirLinx® Remote Monitoring
- Connect anywhere to keep an eye on compressor operation, and reduce the risk of unplanned downtime
- Monitor pressure, temperature, running hours and service hours
- Alerts for service and warnings
- Data stored at 15-minute intervals
- Customizable reporting, from Basic to Advanced
- Real-time information through cellular connection
- Wye-Delta starter
- Zero loss drain
- Phase monitor
- Enclosure with hinged panels
- Easily removable for service
- Standard full base frame
- Helps keep dust and debris out of the unit
- 10-Year Diamond Warranty*
*Maintaining the Sullair 10-Year Diamond Warranty requires using Genuine Sullair parts, Sullube®, and participation in the oil sampling program. Restrictions apply.

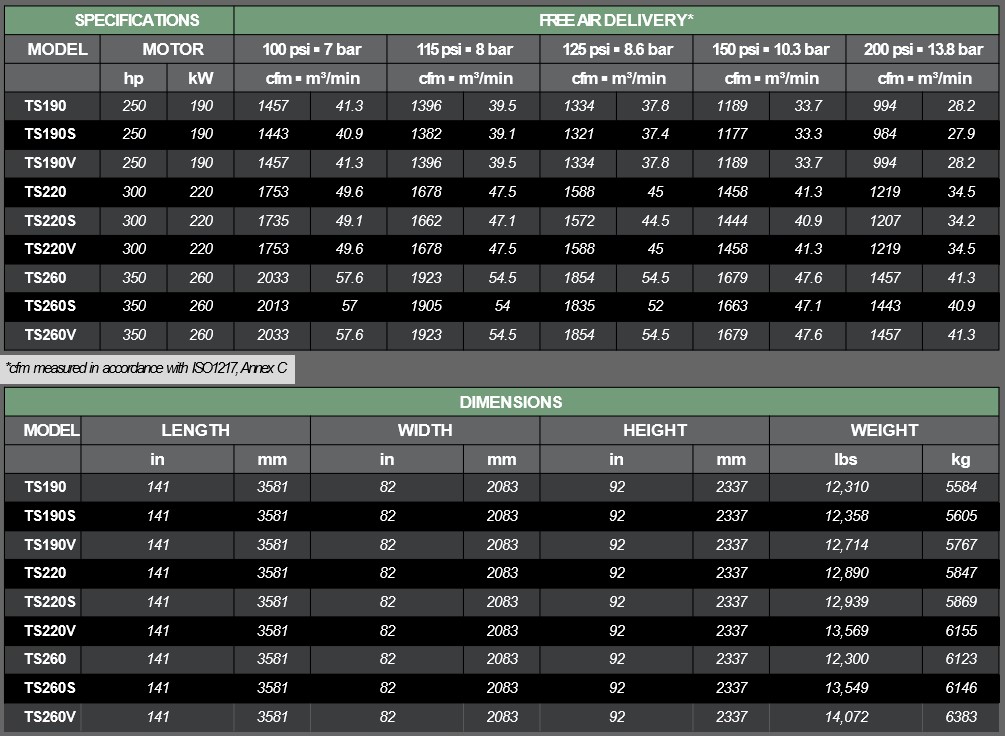

Models & Specifications
- TS190—250 hp (190 kW), 994 to 1457 cfm (28.2 to 41.3 m³/min), 100 to 200 psi (7.0 to 13.8 bar)
- TS190S—250 hp (190 kW), 984 to 1443 cfm (27.9 to 40.9 m³/min), 100 to 200 psi (7.0 to 13.8 bar)
- TS190V—250 hp (190 kW), 994 to 1457 cfm (28.2 to 41.3 m³/min), 100 to 200 psi (7.0 to 13.8 bar)
- TS220—300 hp (220 kW), 1219 to 1753 cfm (34.5 to 49.6 m³/min), 100 to 200 psi (7.0 to 13.8 bar)
- TS220S—300 hp (220 kW), 1207 to 1735 cfm (34.2 to 49.1 m³/min), 100 to 200 psi (7.0 to 13.8 bar)
- TS220V—300 hp (220 kW), 1219 to 1753 cfm (34.5 to 49.6 m³/min), 100 to 200 psi (7.0 to 13.8 bar)
- TS260—350 hp (260 kW), 1467 to 2033 cfm (41.3 to 57.6 m³/min), 100 to 200 psi (7.0 to 13.8 bar)
- TS260S—350 hp (260 kW), 1443 to 2013 cfm (40.9 to 57 m³/min), 100 to 200 psi (7.0 to 13.8 bar)
- TS260V—350 hp (260 kW), 1467 to 2033 cfm (41.3 to 57.6 m³/min, 100 to 200 psi (7.0 to 13.8 bar)
Flow
984 - 2033 cfm
27.9 - 57.6 m³/min
Pressure
100 - 200 psi
7 - 13.8 bar
Power
250 - 350 hp
190 - 260 kW

TWO-STAGE EXTREME PRESSUR
OPTIMUM EFFICIENCY AND POWER SAVINGS
Sullair Two-Stage Air Compressors feature a superior end-to-end design for optimum efficiency and power savings.
- Longer air end life
- No loss of capacity or efficiency
- Lower operating costs
Features & Benefits
Two-Stage Standard Pressure Models
- Multi-Stage Air-Fluid Separation
- Dual nested Optimizer™ separator elements, reduce fluid carryover to a maximum of 1 ppm
- Reduced carryover lowers make-up fluid costs
- Pleated Optimizer elements lower initial pressure drop for greater efficiency and extends element life
- Easy to change with built-in lid lifting device
- Fiberglass Fluid Filter
- Aircraft-quality media provides better filtration
- Up to 20% more efficient than conventional paper elements
- Lengthens life of the compressor
- Optimalair® Heavy-Duty Air Intake Filter
- Includes remote air intake connection
- Provides finest inlet filtration in the industry (99.95%+ overall efficiency/0.4 micron)
- Keeps fluid clean and extends life of other internal components
- Reduces pressure drop throughout the operating life, resulting in energy savings
- Two-Stage Compressor Air End
- Delivers more air
- Reduces power consumption
- Extends air end bearing life
- Enhanced Serviceability for Air-Cooled Oil Cooler and Aftercoolers
- Easy to remove panels provide access for cleaning coolers
- Motor Coupled to Air End Through Non-Lubricated, Flexible Coupling
- Allows use of standard NEMA frame motor
- Simplifies installation and start-up
- Variable Capacity Control System Featuring Spiral Valve Technology
- Lowers part-load operating costs
- Reduces cycling duty on package
- Maintains consistent plant pressure
- Simple control
- Reduces bearing load
- Sullair Supervisor Controller
- Computer-compatible microprocessor controller has simple graphic illustration of monitored functions and an easy-to-read keypad
- Constant readout of pressure and temperature
- On-demand readout of all operating and maintenance conditions
- Monitors key functions and safety shutdowns
- Power failure auto restart
- Dual control, provides automatic start-stop operation
- Lead-lag and sequencing with multiple compressors
- Service and preventive maintenance schedule
- Hours are recorded for “Run,” “Loaded” and “Consumable Parts”
- Fault history with sensor readings
- “Help” key provides built-in troubleshooting
- Easy Maintenance
- Access to all critical components even with a sound enclosure installed
- Time Proven End-to-End Design
- Reduces pressure drop through stages
- Easy serviceability
- NEMA 4
- Wye-Delta starter for softer start
- Bearing Fluid Reservoirs
- Ensure that fluid is available at start-up
- Extend air end life
- Genuine Sullube® Factory Fill
- An extended-life synthetic fluid
- Sullair 10-Year Diamond Warranty*
Two-Stage Extreme Pressure Models
- Dependable, high-performance two-stage air end for maximum power savings
- 460v motor coupled to air end via non-lubricated, flexible coupling
- Allows use of Standard NEMA frame motor
- Flange-mounted for positive alignment
- Sullair Supervisor Controller
- Easy pressure adjustment
- Capacity modulation range 100 to 40%
- Heavy-duty inlet air filter
- Two-stage, dry type
- Inside safety element
- Differential pressure indicator
- Two-stage, dry type
- Air-fluid separation
- ASME psi rated tank
- ASME pressure relief valve
- Pleated air-fluid separator element for lower initial pressure drop
- ASME psi rated tank
- Cooling
- Air-cooled units use mounted and piped aftercooler with quiet fan
- Water-cooled units feature an air-in-shell, water-in-tube aftercooler design
- LS-20TS are equipped with Remote Coolers
*Maintaining the Sullair 10-Year Diamond Warranty requires using Genuine Sullair parts and Sullube, as well as the oil sampling program.
Models & Specifications
Two-Stage Standard Pressure Models
60 Hz
- TS-32S—400 to 600 hp (298 to 447 kW), 1681 to 3000 cfm (47.6 to 84.9 m3/min), 100 to 150 psi (7 to 10.3 bar)
- V-320TS—200 to 450 hp (298 to 336 kW) Variable Speed Drive (VSD), 1695 to 2310 cfm (48 to 65.4 m3/min), 100 to 150 psi (7 to 10.3 bar)
50 Hz
- TS-32S—400 to 600 hp (298 to 447 kW), 1942 to 2900 cfm (55.0 to 82.1 m3/min), 100 to 150 psi (6.8 to 10.3 bar)
Two-Stage High-Pressure Models
60 Hz
-

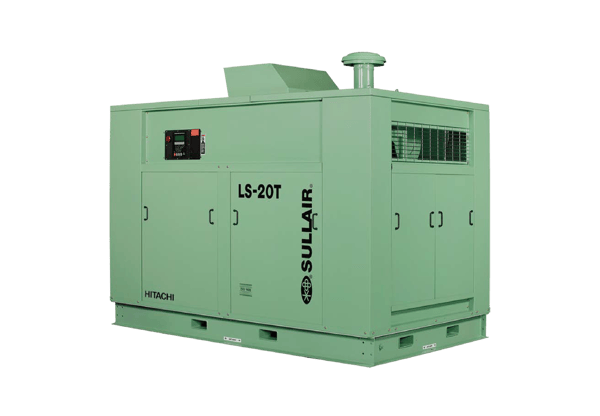

- LS-20T—200 to 350 hp , 500 to 750 cfm, 225 to 500 psi
- LS-20TS—300 to 500 hp , 800 to 1350 cfm, 225 to 350 psi
Flow
500 – 3000 cfm
14.2 - 84.9 m³/min
Pressure
100 – 500 psi
7 - 34.5 bar
Power
200 - 600 hp
149 – 450 kW
